Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: EUR
|

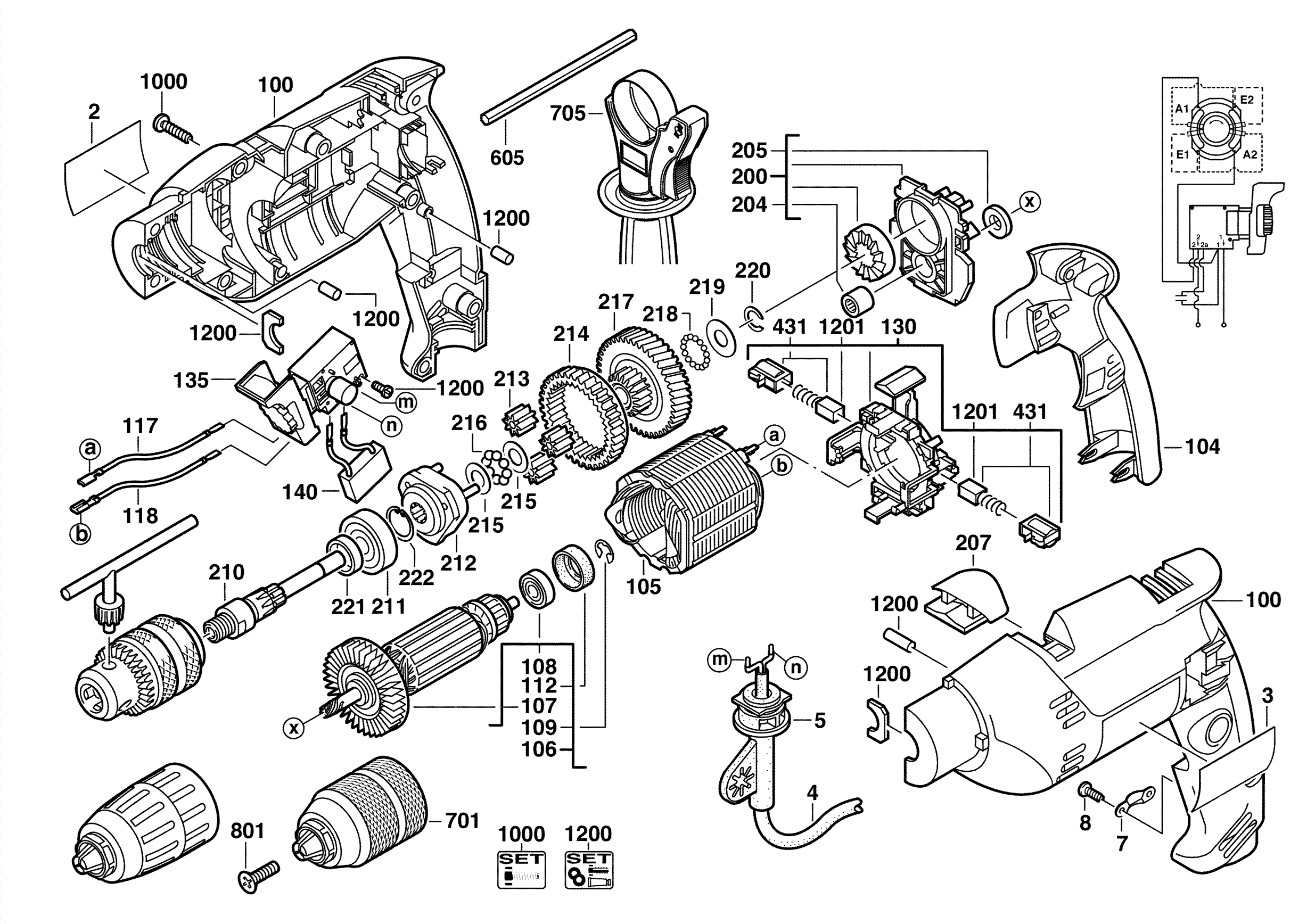

Position |
Description (Qty) |
Part number |
Price (€) |
|
|
0002 |
RATING PLATE (1)
|
Item discontinued
(4931380549) |
|
|
|
0003 |
TYPE PLATE (1)
|
Item discontinued
(4931355127) |
|
|
|
0004 |
CONNECTION CABLE (1)
|
4931622543 |
|
|
|
0005 |
CABLE ENTRY SLEEVE (1)
|
4931357283 |
|
|
|
0007 |
CABLE COLLAR (1)
|
4931256500 |
|
|
|
0008 |
SCREW (2)
|
4931624538 |
|
|
|
0100 |
HOUSING (1)
|
4931415711 |
|
|
|
0104 |
HOUSING COVER (1)
|
4931380436 |
|
|
|
0105 |
ELECTRIC FIELD (1)
|
4931442718 |
|
|
|
0106 |
ARMATURE (1)
|
4931442649 |
|
|
|
0107 |
FAN (1)
|
4931330633 |
|
|
|
0108 |
BALL BEARING (1)
|
4931902888 |
|
|
|
0109 |
WASHER (1)
|
4931621834 |
|
|
|
0112 |
RUBBER SLEEVE (1)
|
4931306351 |
|
|
|
0117 |
WIRE (2)
|
4931253700 |
|
|
|
0118 |
WIRE (1)
|
4931253700 |
|
|
|
0130 |
SET COLLAR (1)
|
4931380433 |
|
|
|
0135 |
SWITCH BOARD (1)
|
4931372529 |
|
|
|
0140 |
CAPACITOR (1)
|
4931311062 |
|
|
|
0200 |
BEARING END PLATE (1)
|
4931330999 |
|
|
|
0204 |
NEEDLE BEARING (1)
|
4931219424 |
|
|
|
0205 |
FELT WASHER (1)
|
4931357000 |
|
|
|
0207 |
PROTECTIVE CAP (1)
|
4931357206 |
|
|
|
0210 |
DRILL SPINDLE (1)
|
4931409805 |
|
|
|
0211 |
BALL BEARING (1)
|
4931804500 |
|
|
|
0212 |
PINION CAGE (1)
|
4931357173 |
|
|
|
0213 |
PLANET WHEEL (3)
|
4931357172 |
|
|
|
0214 |
INTERN.GEARED WHEEL (1)
|
4931357093 |
|
|
|
0215 |
WASHER (2)
|
4931357269 |
|
|
|
0216 |
BALL (8)
|
4931805413 |
|
|
|
0217 |
GEAR (1)
|
4931364131 |
|
|
|
0218 |
BALL (15)
|
4931623449 |
|
|
|
0219 |
WASHER (1)
|
4931364128 |
|
|
|
0220 |
SPRING RING (1)
|
4931623066 |
|
|
|
0221 |
SLEEVE (1)
|
4931324482 |
|
|
|
0222 |
RING D471 12X1 (1)
|
4931605142 |
|
|
|
0431 |
CARBON BRUSH SET (1)
|
4931392563 |
|
|
|
1000 |
BOLT SET (1)
|
4931320180 |
|
|
|
1200 |
MAINTENANCE SET (1)
|
4931364145 |
|
|
|
1201 |
CARBON BRUSH SET (1)
|
4931392602 |
|
|
|
0701 |
Keyless Chuck 1.5-13 1/2x20-1pc (1)
|
4932376533 |
|
|
